Run Status

The Run Status displays the run status of a job. A job is a collection of tasks created by the user to carry out various operations in DIH.

Once a job is called out for execution, it starts executing the tasks within that job. The execution summary of the tasks within the job is stored in the Run Status - Job Summary page. This page consists of a list of all the jobs displayed in the following format:

Run Summary Sections

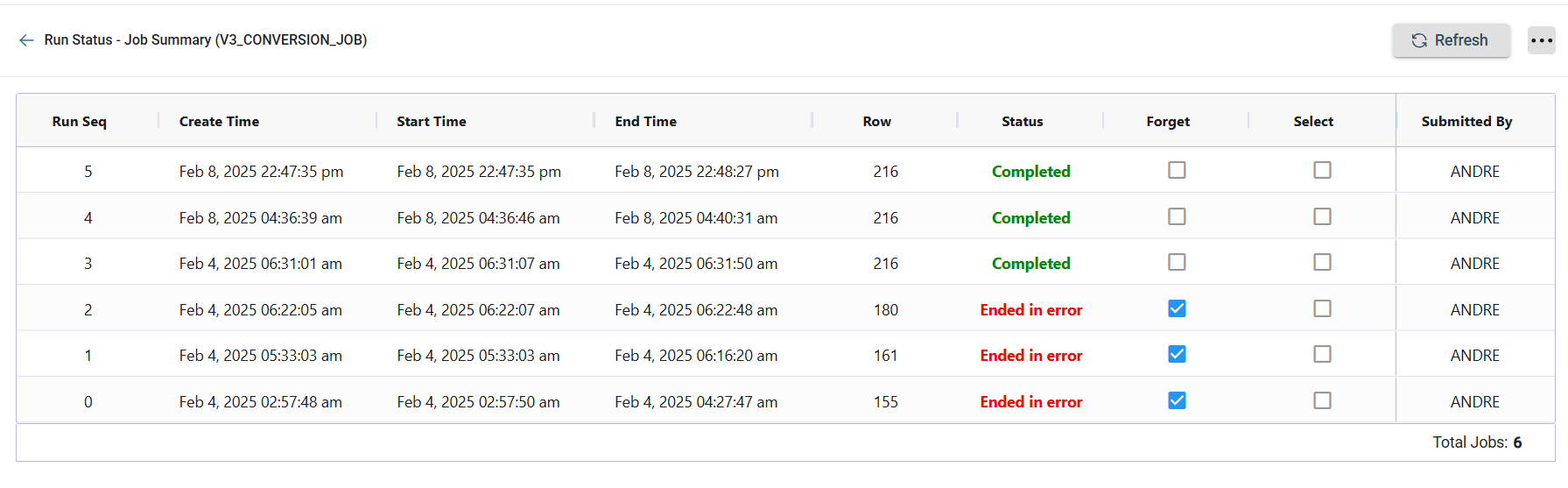

Job Run

Upon clicking on a particular job, the user will be able to view the Job Run section, which displays all the run sequences of that job along with its start and end time, the number of rows processed by the job, and the job run status.

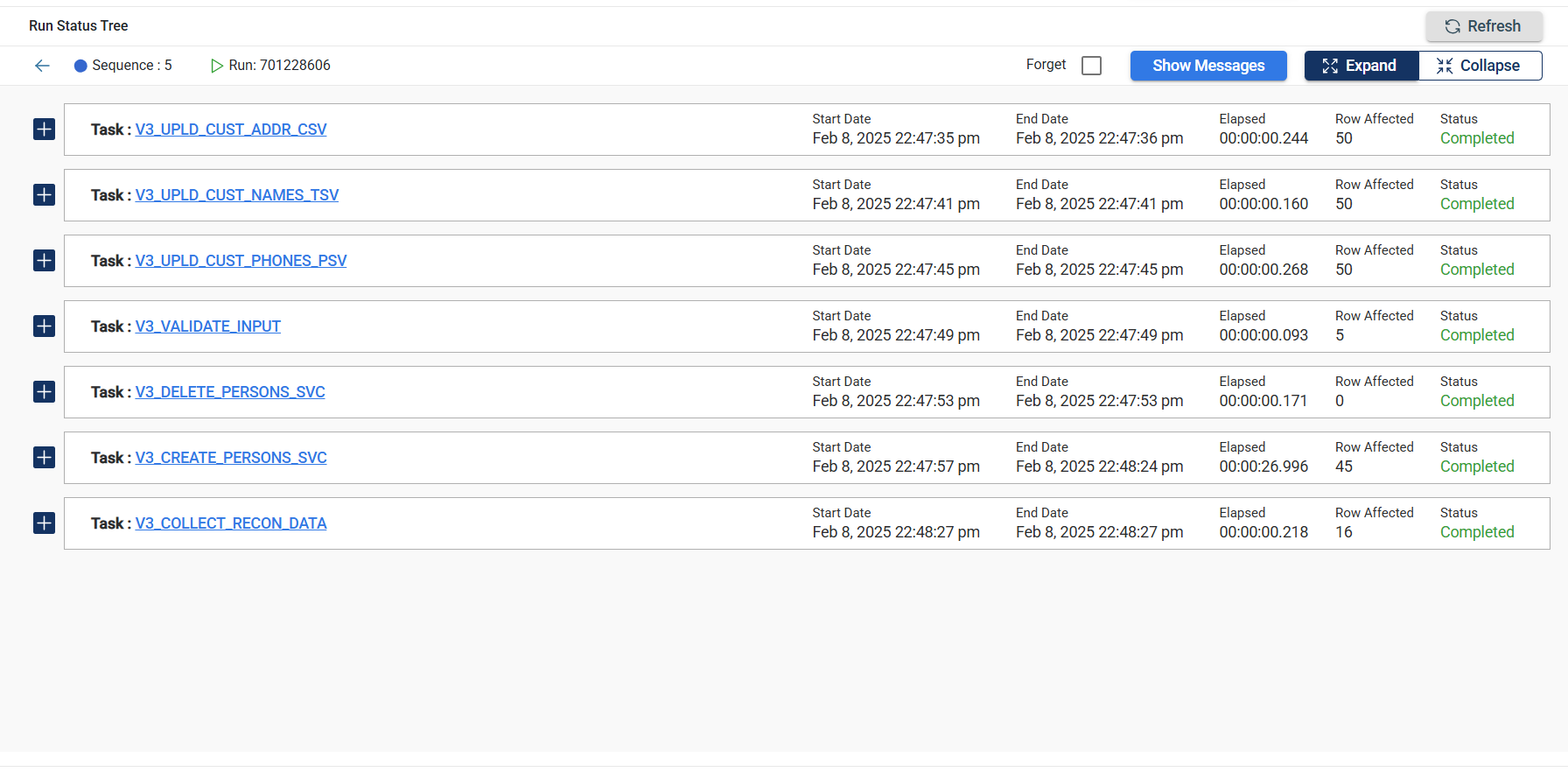

Run Status Tree

The Run Status Tree section can be obtained by clicking on any Run Sequence from the Job Run section. This section displays the task, start date, end date, elapsed time, rows affected, and the status.

Target

This section displays the target sequence information along with the target ID.

{% embed url=“https://docs-riaproducts.s3.us-east-1.amazonaws.com/dih-ga/images/userguidev3/runstatus-target.mp4" %}

Mapping

This section displays the task level and mapping sequence information of that job.

{% embed url=“https://docs-riaproducts.s3.us-east-1.amazonaws.com/dih-ga/images/userguidev3/runstatus-mapping.mp4" %}

Thread

This section displays the multiple thread counts used along with the thread ID.

{% embed url=“https://docs-riaproducts.s3.us-east-1.amazonaws.com/dih-ga/images/userguidev3/runstatus_thread.mp4" %}

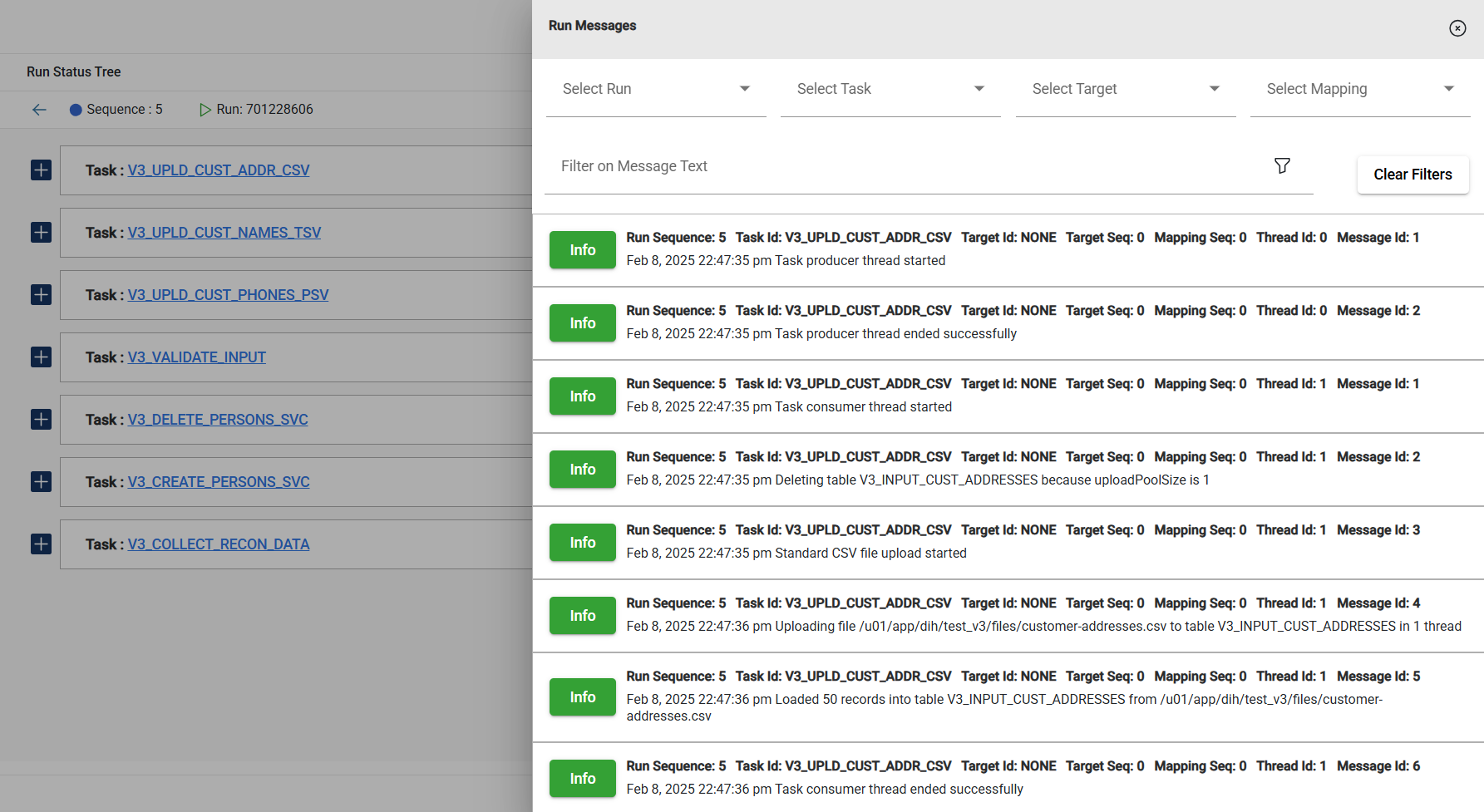

Messages

On the upper right-hand side of the screen, a Show Messages button is available that allows you to check logs and error messages if a task fails.

Run Messages - Filter

The Run Messages includes a Filter feature that allows you to filter the list of messages by selecting the preferred run, task, target, and mapping in the dropdown list or by providing a keyword in the filter textbox.

• Run

{% embed url=“https://docs-riaproducts.s3.us-east-1.amazonaws.com/dih-ga/images/userguidev3/runstatus_messages-run.mp4" %}

• Task

{% embed url=“https://docs-riaproducts.s3.us-east-1.amazonaws.com/dih-ga/images/userguidev3/runstatus_messages-task.mp4" %}

• Target

{% embed url=“https://docs-riaproducts.s3.us-east-1.amazonaws.com/dih-ga/images/userguidev3/runstatus_messages-target.mp4" %}

• Mapping

{% embed url=“https://docs-riaproducts.s3.us-east-1.amazonaws.com/dih-ga/images/userguidev3/runstatus_messages-mapping.mp4" %}

• Message

{% embed url=“https://docs-riaproducts.s3.us-east-1.amazonaws.com/dih-ga/images/userguidev3/runstatus_messages-text.mp4" %}

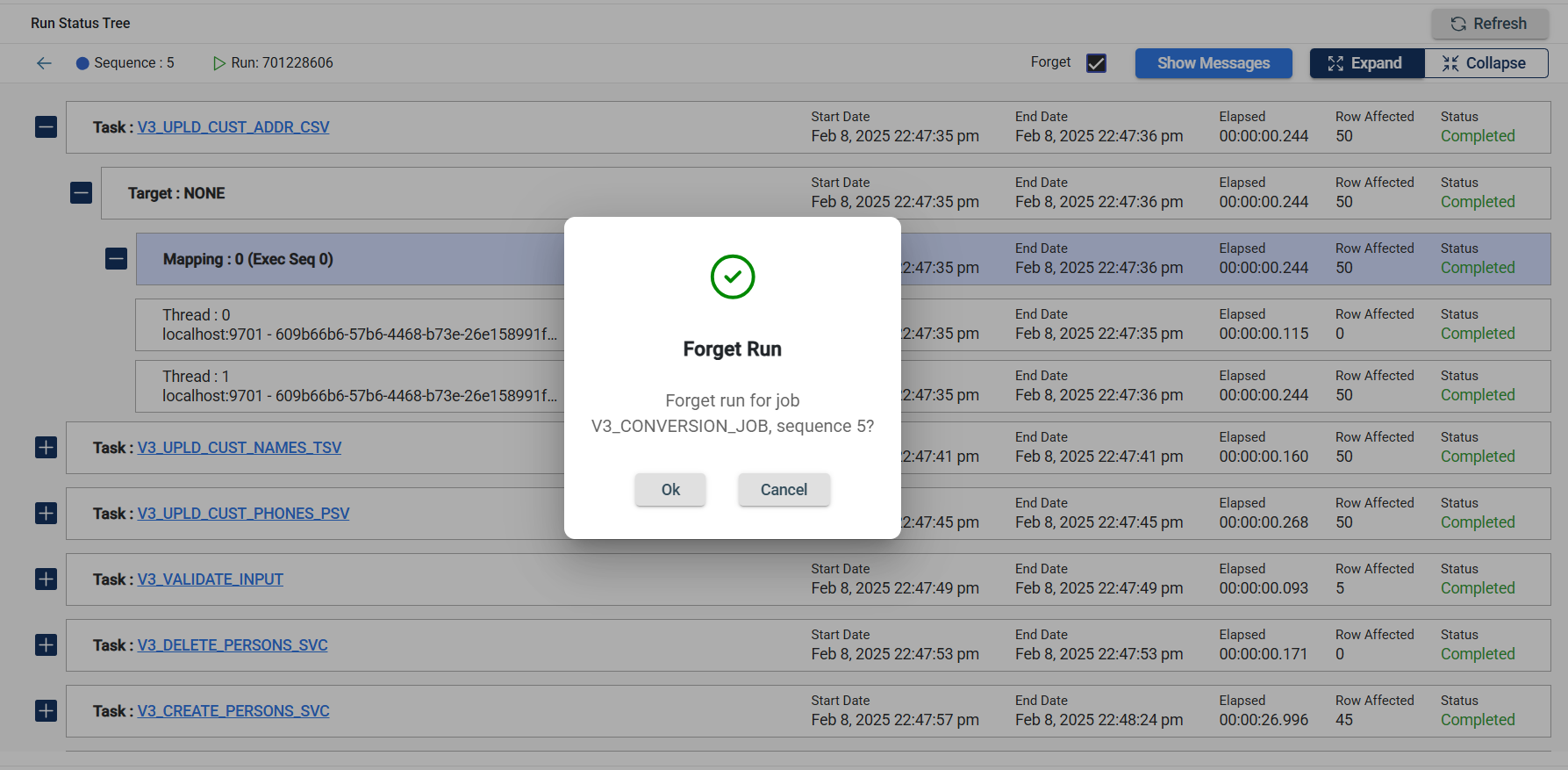

Forget

On the upper right-hand side of the screen, a Forget checkbox is available that allows you to disregard the failed run and create a new run sequence.

Expand and Collapse

On the upper right-hand side of the screen, an Expand button is available that allows you to display detailed information about each task in the Run Status Tree, including the Target and Mapping. A Collapse button is also available that allows you to hide the expanded details and show the task name in the Run Status Tree.

{% embed url=“https://docs-riaproducts.s3.us-east-1.amazonaws.com/dih-ga/images/userguidev3/runstatus_expand-collapse.mp4" %}

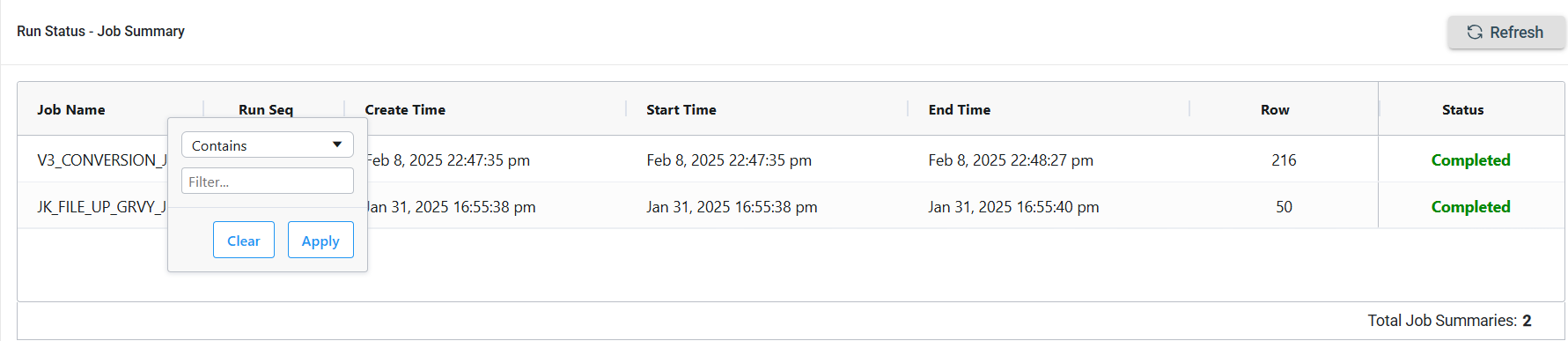

Filter and Sort

The Run Status includes a Filter feature that allows you to filter the list of jobs by providing a keyword or the full name of the job. The job that matches the provided keyword or name will be displayed on the screen.

To filter the report, click on the in the column title.

You can also sort the data in ascending or descending order by clicking on or .

Refresh

A Refresh button is on the upper right-hand side of the screen. This feature allows you to reload the page whenever you want.
